K11-100mm Rotary A Axis Rotational Fourth 4th Axis 3 Jaw Chuck Gapless harmonic reducer Gearbox dividing head Ratio 50:1 with 65mm Tailstock for CNC Router Engraving Milling Machine Changzhou Rattm Motor Co Ltd

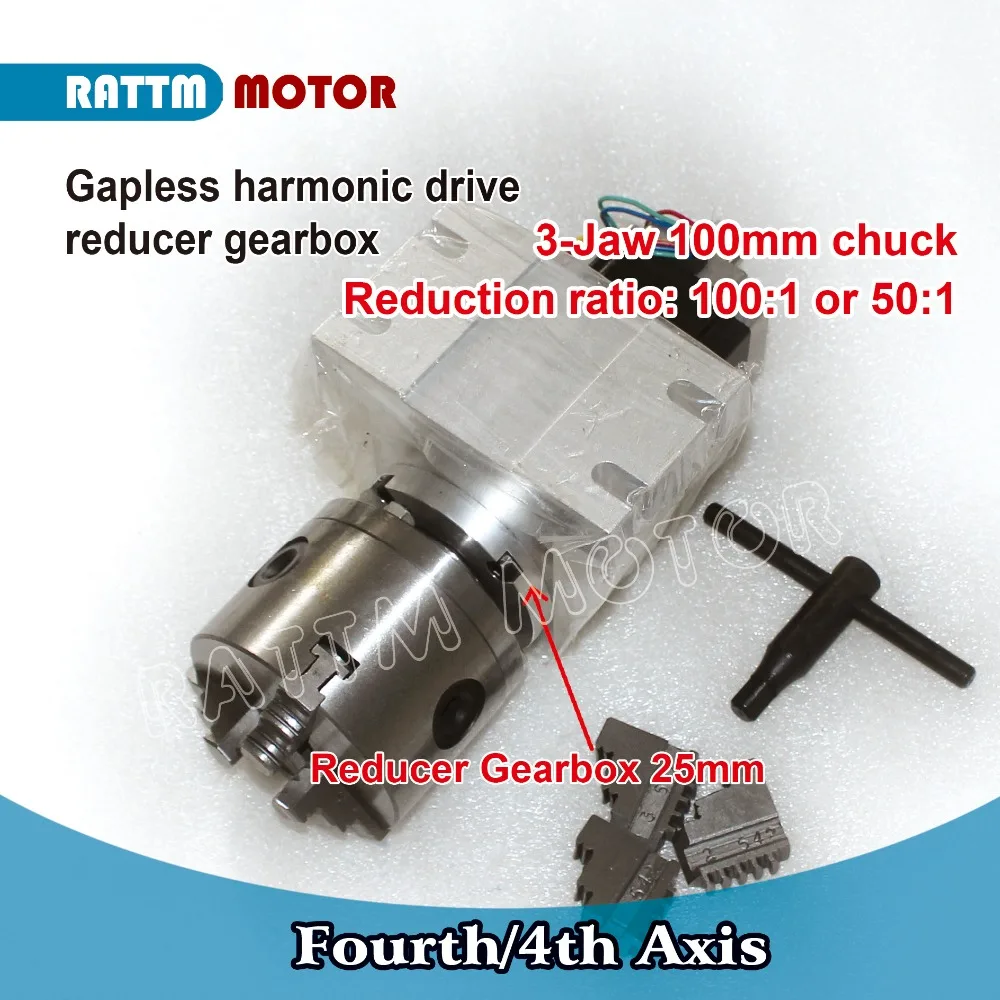

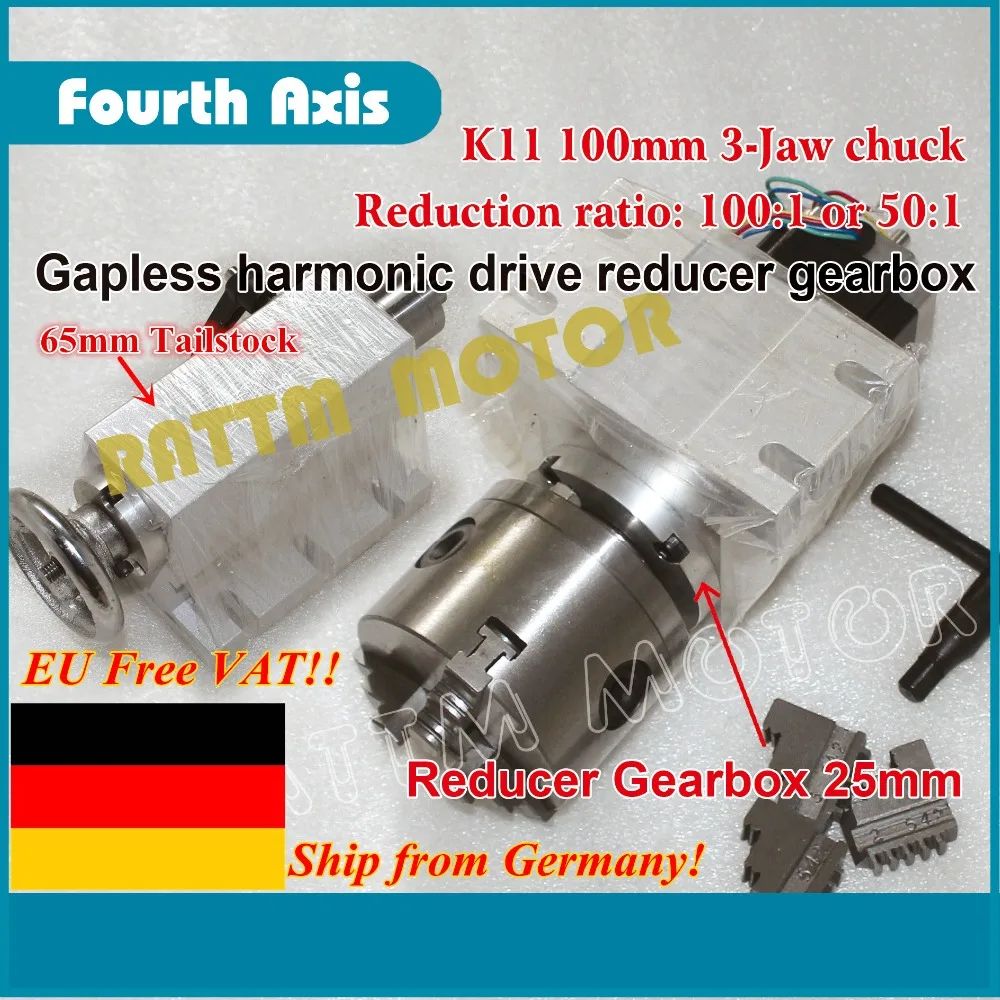

Rotational 4th Axis A aixs Rotary table Fourth axis 3 Jaw Chuck Gapless harmonic reducer gearbox stepper motor K11-100mm dividing head with 65mm Tailstock for CNC Router Engraving Milling Machine - -. Chuck Type:Gearbox K11-100mm 3 Jaw Chuck 。 Stepper motor: Nema23 2-phase 57 stepper motor 。 Center height: 65mm;Total height: 115mm 。 Reducing ratio:50:1 (only have 50:1 type) 。 Accessories: Set of Anti-claw and wrenches 。 Package include:。 1Set 4th axis Gapless harmonic K11-100mm  Ratio 0:1  (Includes stepper motor and 3 jaw chuck)。 1Pcs 6mm Tailstock。 Descriptions:。 Engraving machine fourth axis (A axis, Rotational Axis, CNC dividing head) gapless harmonic reducer gearbox。 Chuck type:/ K11 100mm three jaw centering chuck。 Center height:/ 6mm。 Total height:/ 11mm。 Angle:/ 0.018°/ step。 Gear box output shaft diameter:/ mm。 Reducing ratio:/ 0:1 。 Stepper motor:/ Nema3 7mm 3A -phase 4 wire。 Accessories:/ Set of Anti-claw and wrenches。 Weight:/ 6.KG。 The fourth axis parameter settings:。 Mach3 system settings:/ the pulses required for 1°。 (Motor 1 lap pulses x Driver fine fraction x Reduction ratio) ÷ 360°。 For example:/ 7mm - phase stepper motor, fine fraction of 16, reduction ratio 100:1。 (00 x 16 x 100) / 360=888.88888888)。 Weihong system settings:/ 1 pulse along the angle 。 360°/(Motor 1 lap pulses x Driver fine fraction x Reduction ratio)。 For example:/ 7mm - phase stepper motor, fine fraction of 16, reduction ratio 100:1。 360 / (00 x 16 x 100) =0.0011。 。 。 Tailstock type:。 。 Center Height:/ 6mm。 Stretch distance:/ 0mm。 Top tip: Activity type。 Axial locking wrench for tailstock。 。 。  。 。 。 。 。 。
